LED Flexible Module II
Home > Flexible Module > LED Flexible Module II
Product Name:
LED Flexible Module IIModel No.:
P1.875, P2.5 ,P3 ,P4
Features:
1.Front access, no need back maintenance space.2. Fanless design, Zero Noise.

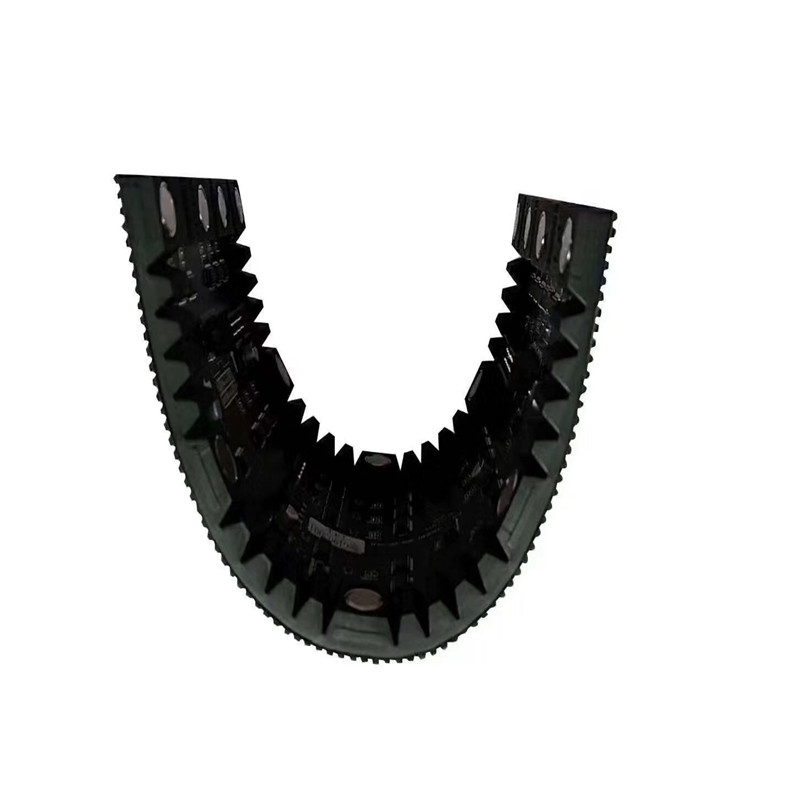

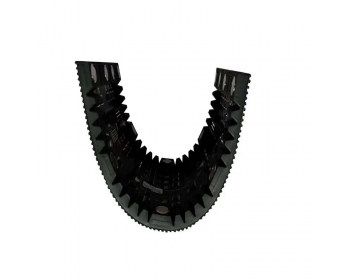

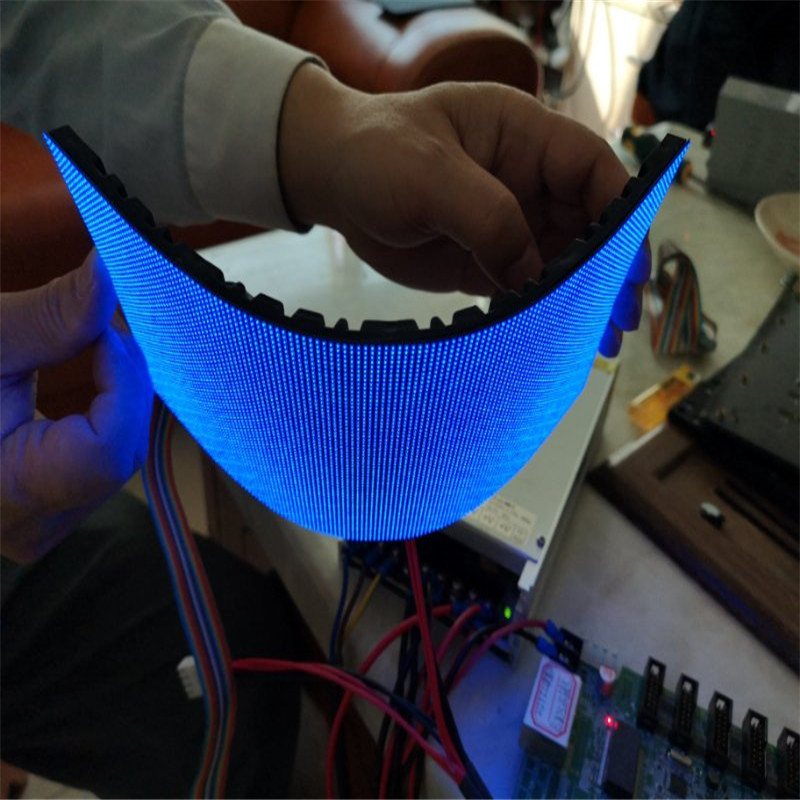

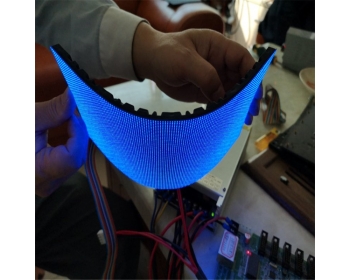

3. Convex, concave, even twisted.
4. Saving space to make it very slim, module just 7.5mm depth.
5. Lightweight to be hanging or easily operated, just 0.9kg/pc.
6.Much cheaper than Led flexible I.
- Parameter
Model P1.875 P2.5 P4 PH (mm) 1.875 2.5 4 LED Model SMD1010 SMD2121 SMD2121 Brightness（nit ) 800 1000 1200 Module size (Width X height) (mm) 240 X120 240 X120 256 X 128 Module resolution 128 X 64 96 X 48 64 X32 Pixel density
(dot/㎡)286225 160000 62500 Max.Power (W/㎡) 800 800 800 Avg.Power (W/㎡) 250 246 246 IP Rating IP20 IP20 IP20 Refresh rate (Hz) 3840 1920 1920 Weight 0.18kg/pc 0.17kg/pc 0.25kg/pc working temperature -10~40℃ -10~40℃ -10~40℃ Gray grade 16bits 16bits 16bits Contrast Ratio 3000:1 3000:0 3000:1
