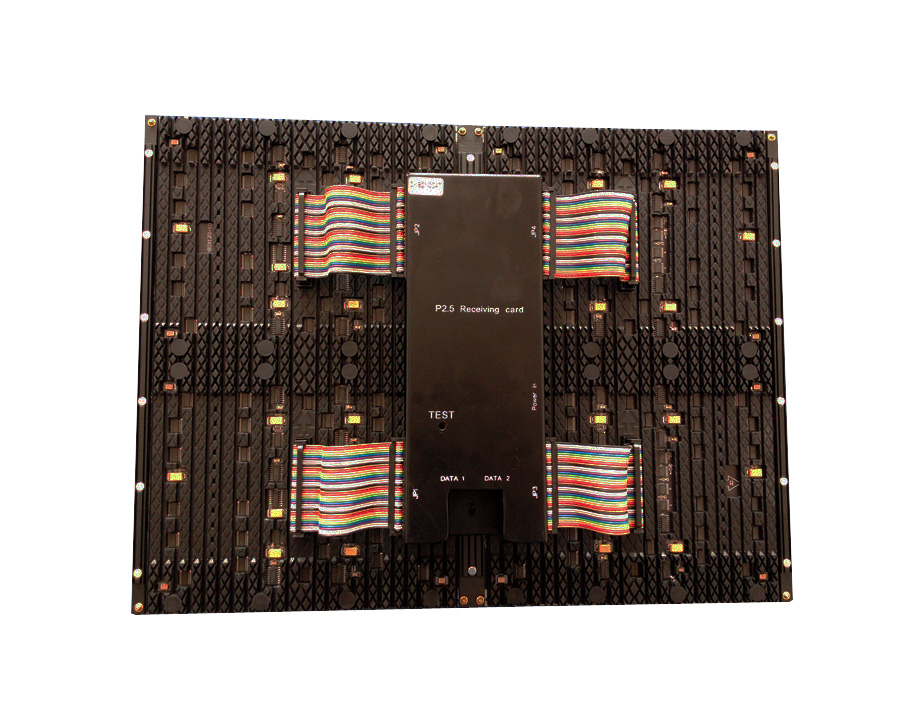

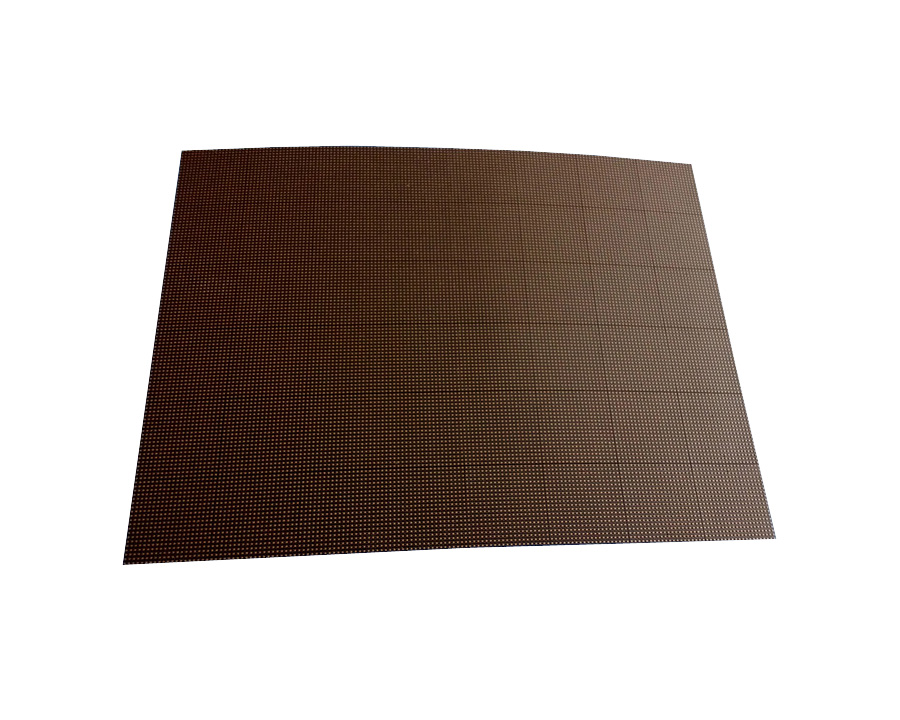

Flexible Module I
Home > Flexible Module > Flexible Module I
Product Name:
Flexible Module IModel No.:
P1.677, P1.92 , P2.5
Features:
1. Front access, no need back maintenance space2. Fanless design, Zero Noise

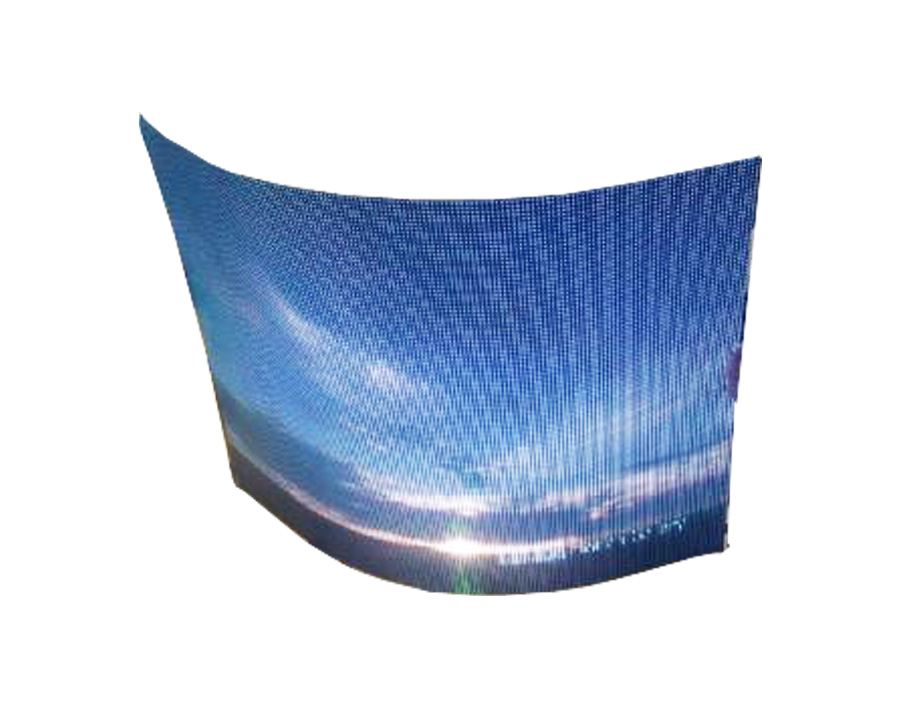

3. Convex, concave, even twisted
4. Saving space to make it very slim, module just 7.5mm depth
5. Lightweight to be hanging or easily operated, just 0.9kg/pc
6. Good ratio 4:3.
- Parameter
Model
P1.67
P1.92
P2.5
PH (mm)
1.67
1.92
2.5
LED Model
SMD1010
SMD1010
SMD1515
Brightness（nit )
600
800
1000
Module size (Width X height) (mm)
200 X 300
200 X 300
200 X 300
Module resolution
240 X 180
104 X 156
80 X 120
Pixel density
(dot/㎡)360000
270400
160000
Max.Power (W/㎡)
800
800
800
Avg.Power (W/㎡)
250
246
246
IP Rating
IP20
IP20
IP20
Refresh rate (Hz)
>3000
>3000
>3000
Weight
1.38kg/pc
1.38kg/pc
1.38kg/pc
working temperature
-10~40℃
-10~40℃
-10~40℃
Gray grade
16bits
16bits
16bits
Contrast Ratio
3000:1
3000:1
3000:1
