Product Name:
Transparent Display
Model No.:
P5-P8, P8, P10, P16

Features:

1.40%-80% transparency and mainly decorate for glass wall.
2.Fanless design, Zero noise.
3.CNC Cabinet design, seamless connection between cabinets.

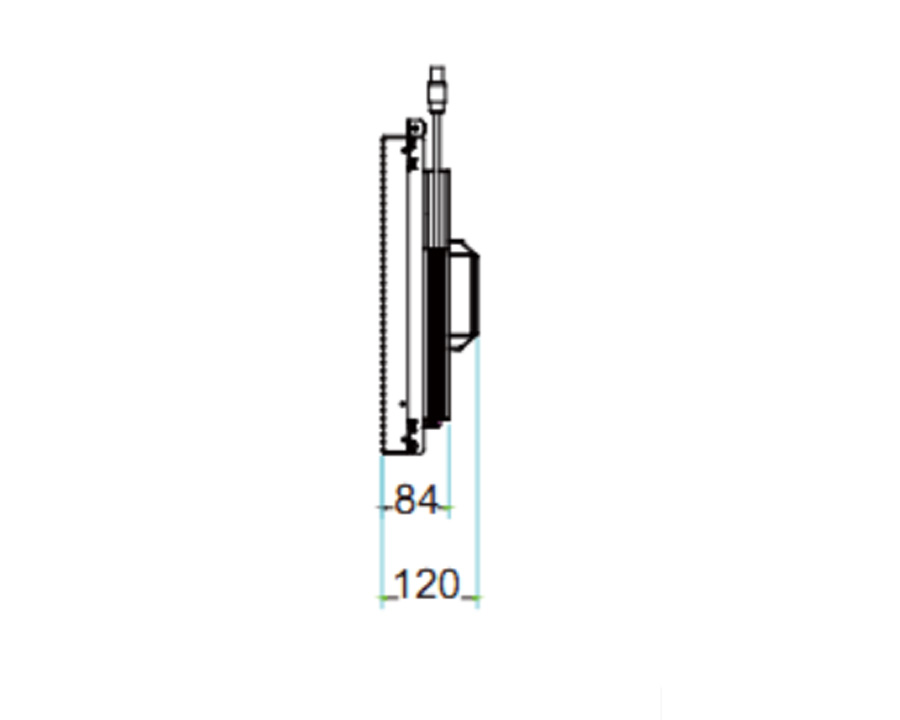

4.Ultra-slim 85mm depth, Ultra-light 12kg/sqm.
5.Adjustable brightness cater to indoor and outdoor usage.
6.Pixel in Horizon is fixed, but Pixel in height is customized based on exact project.

Parameter

Model	P5-P8	P8	P10	P16
PH (mm)	5 x 8	7.5 x 8	10	16
LED Model	SMD2525	SMD2525	SMD2525	SMD3535
Brightness（nit )	6000	6000	6000	3000
Transparency	78%	78%	85%	90%

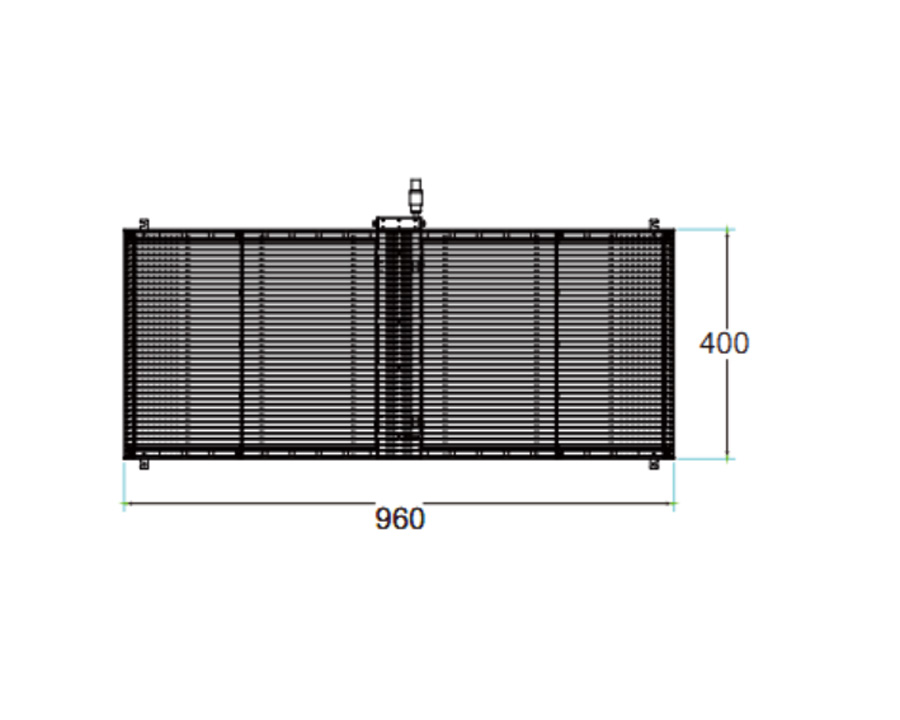

Module size (Width X height) (mm)	960 X 400	960 X 400	960 X 400	960 X 400
Module resolution	192 X 50	128 X 50	96 X 40	60X 25
Pixel density (dot/㎡)	25000	16666	10000	3906
Max.Power (W/㎡)	860	820	880	400
Avg.Power (W/㎡)	258	246	264	120
IP Rating	IP20	IP20	IP20	IP20
Refresh rate (Hz)	1500~3000	1500~3000	1500~3000	1500~3000
Weight	12kg/㎡	12kg/㎡	12kg/㎡	12kg/㎡
working temperature	-10~40℃	-10~40℃	-10~40℃	-10~40℃
Gray grade	16bits	16bits	16bits	16bits
Contrast Ratio	3000:1	3000:1	3000:1	3000:1
