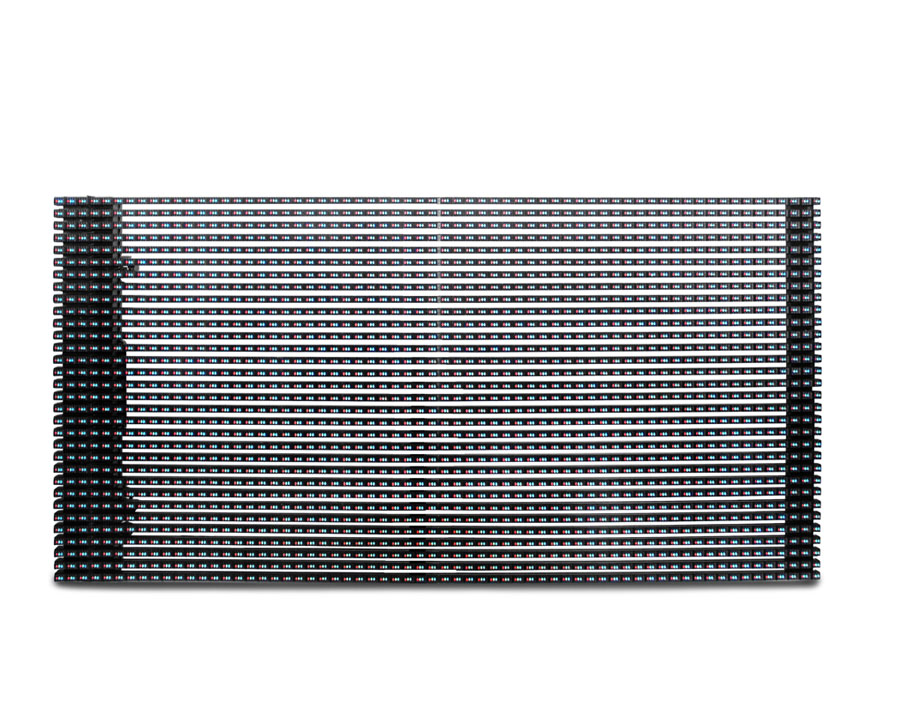

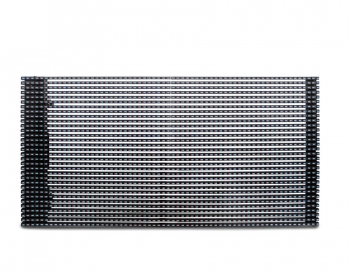

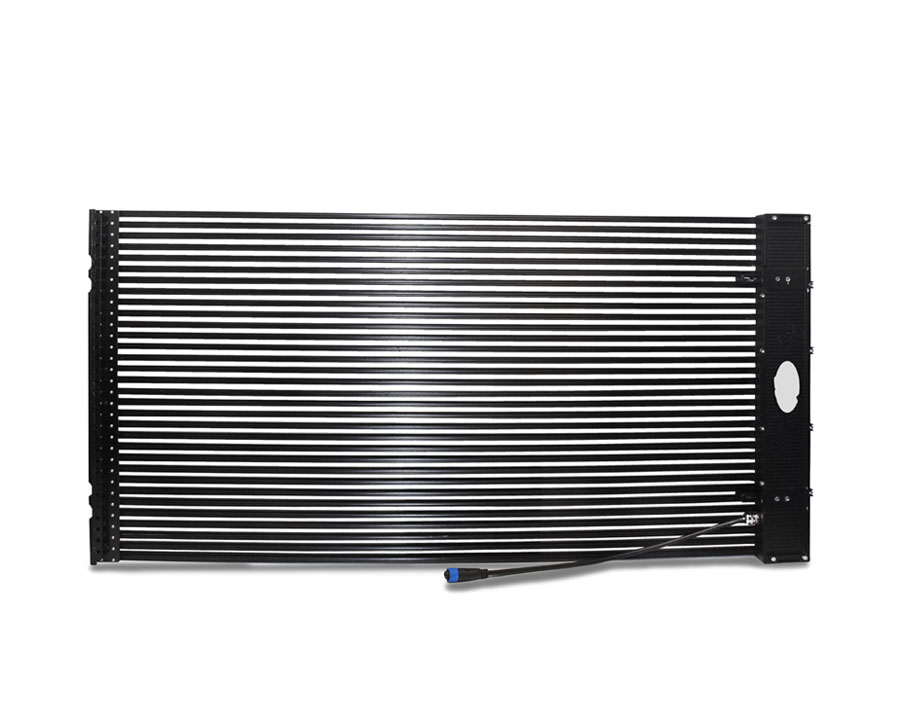

Outdoor Curtain

Home > Outdoor Curtain > Outdoor Curtain

Product Name:
Outdoor Curtain
Model No.:
P7.81, P15.625, P31.25

Features:

1.Ultra-thin & ultra-light.
2.Good heat dissipation, no need air-conditioner.
3.Transparency arrange from 40% to 60% depend on different model.
4.Pixel in Horizon is fixed, but Pixel in height is customized based on exact project.
5.IP65（front and back）, high protection level.
6.Cabinet and module front/rear maintenance can be realized.

Parameter

Model	P7.81	P15.6	P31.25
PH (mm)	7.81	15.6	31.25
LED Model	SMD2727	DIP346	DIP346
Brightness（nit )	7000	7000	6000
Pixel density (dot/㎡)	97344	65536	43264
Cabinet size (mm)	500x1000	500x1000	500x1000
Max.Power (W/㎡)	520	480	350
Avg.Power (W/㎡)	160	150	120
IP Rating	IP65	IP65	IP65
Refresh rate (Hz)	>1200	>1200	>1200
Weight	25kg/㎡	25kg/㎡	25kg/㎡
working temperature	-20~40℃	-20~40℃	-20~40℃
Gray grade	16bits	16bits	16bits
Contrast Ratio	3000:1	3000:1	3000:1
