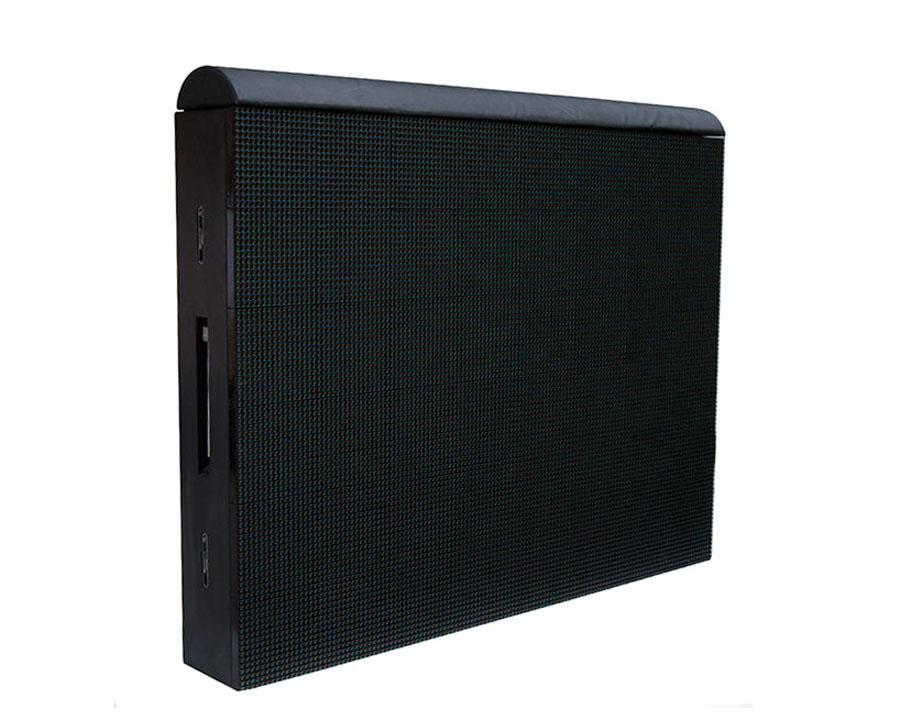

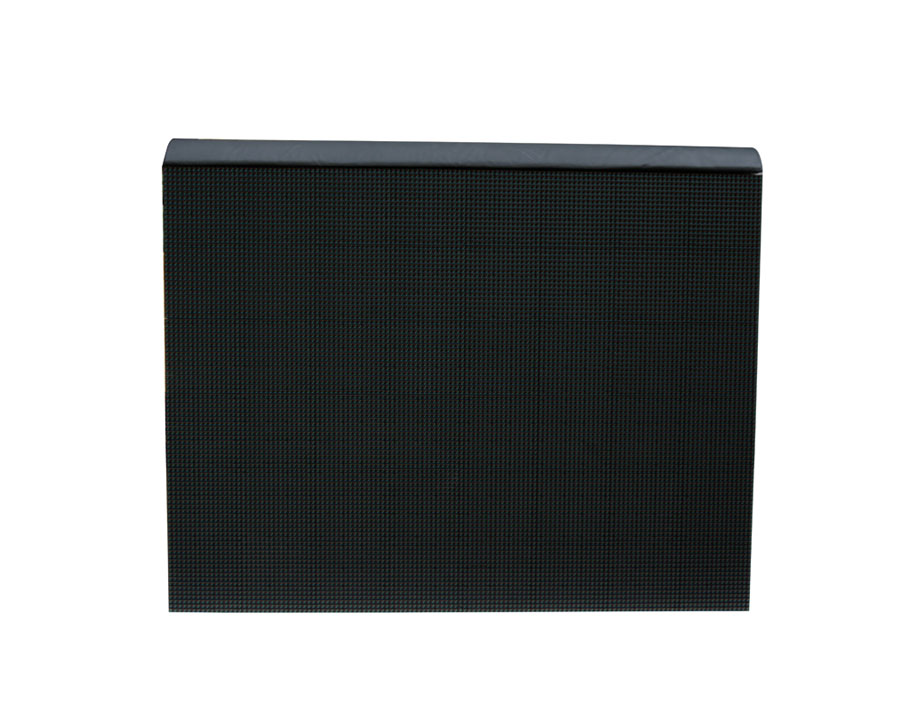

LED Perimeter Display
Home > LED Perimeter Display > LED Perimeter Display
Product Name:
LED Perimeter DisplayModel No.:
P10, P16, P20
Features:

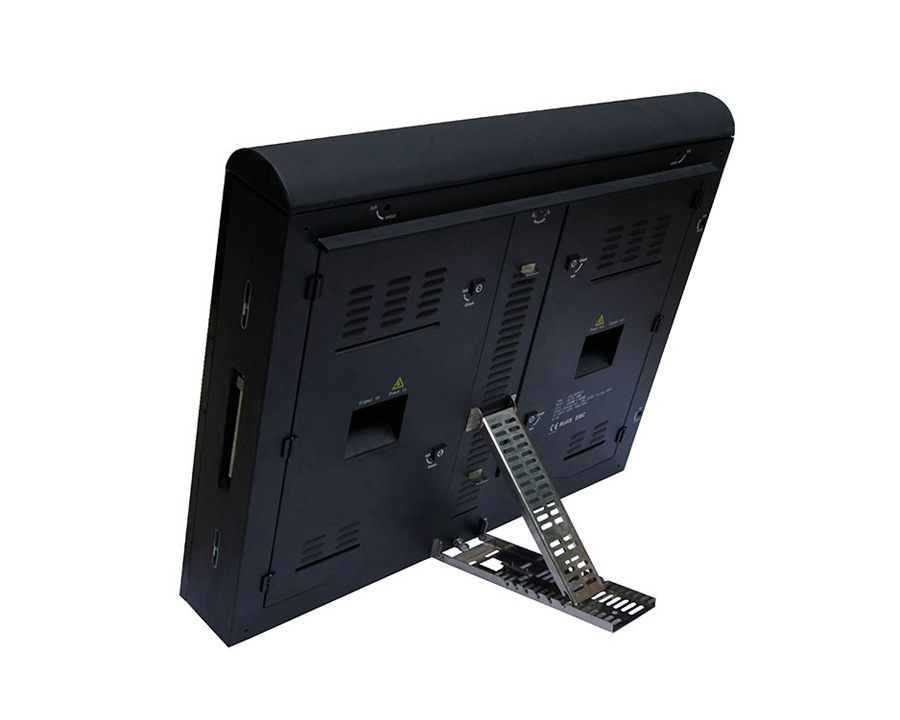

1. Elegant cabinet design.2. Rubber louver, padding and foot stands.
3. Hot replaceable modules without cables and screws.
4. Uniform cabinet height ensured by adjustable foot cups.
5.Closed annular screen can be achieved.
6.Power & data backup.
- Parameter
Model
P10
P16
P20
PH (mm)
10
16
20
LED Model
DIP346
DIP346
DIP346
Brightness（nit )
7500
7500
7000
Pixel density
(dot/㎡)10000
6944
2500
Cabinet size (mm)
1280x960
1024x768
1280x960
Max.Power (W/㎡)
840
940
820
Avg.Power (W/㎡)
270
300
250
IP Rating
IP65
IP65
IP65
Refresh rate (Hz)
>1200
>1200
>1200
Weight
55kg/㎡
55kg/㎡
55kg/㎡
working temperature
-20~40℃
-20~40℃
-20~40℃
Gray grade
16bits
16bits
16bits
Contrast Ratio
3000:1
3000:1
3000:1
