Product Name:
Front Maintenenace Module
Model No.:
P3.2, P3.91, P4.81, P6.25

Features:

1. Front access, no need back maintenance space.

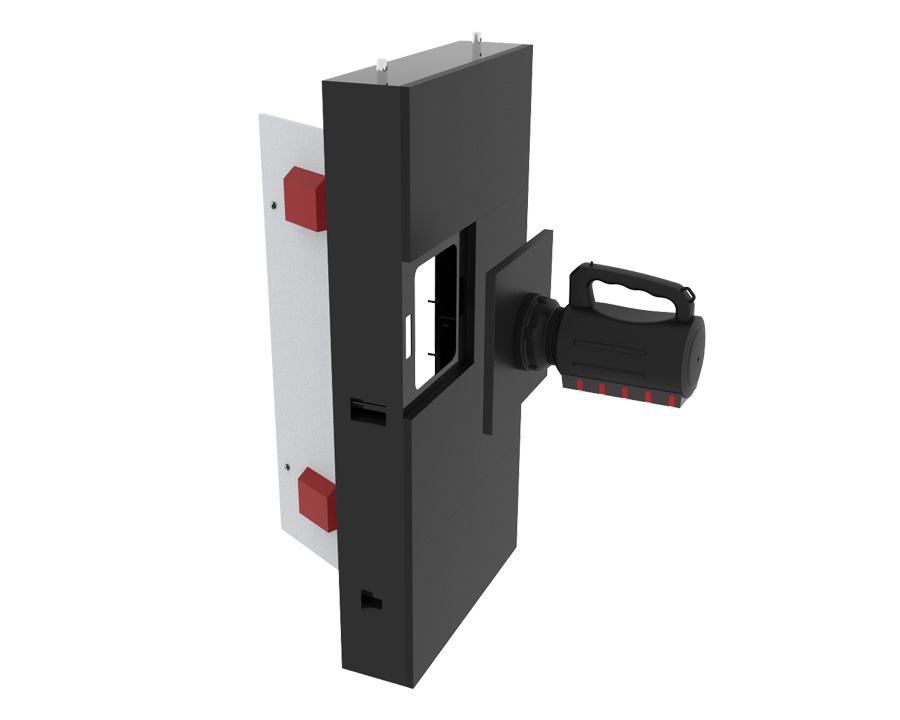

2. Save time to replace module, just rotate 2 screws with tool.
3. Save labour cost .
4. Suitable for double screen, just 180mm depth,
5. All type has same screw position on module shell, you can use different model in one cabinet.
6. Save purchase cost, you can purchase cabinet in bulk, as cabinet suitable for all model.

Parameter

Model	P3.2	P3.91	P4.81	P6.25
PH (mm)	3.2	3.91	4.81	6.25
LED Model	SMD1921	SMD2725/1921	SMD2727	SMD2727
Brightness（nit )	5000	5500	5500	5500

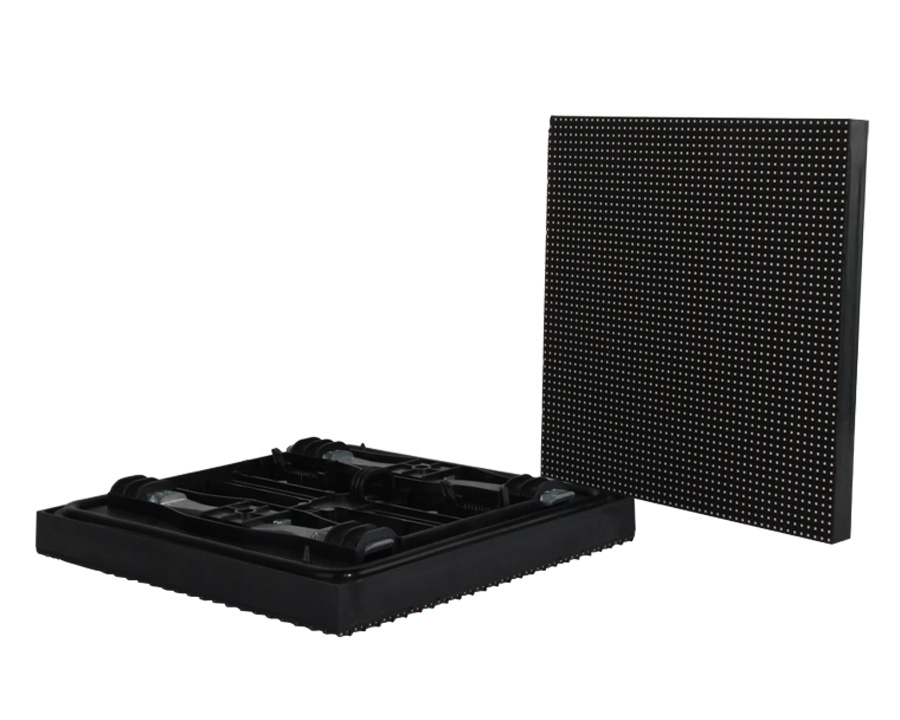

Module size (Width X height) (mm)	250X 250	250X 250	250X 250	250X 250
Module resolution	78 X 78	64X64	52 X 52	40X 40
Pixel density (dot/㎡)	97344	65536	43264	25600

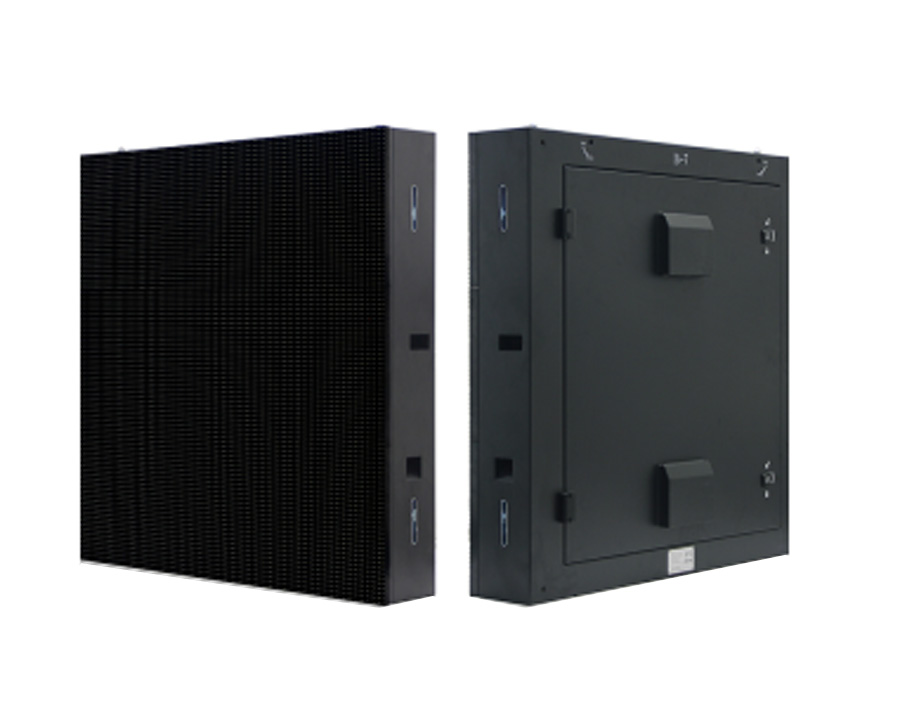

Cabinet size (mm)	500x500	500x500	500x500	500x500
Max.Power (W/㎡)	960	960	960	960
Avg.Power (W/㎡)	300	300	300	300
IP Rating	IP65	IP65	IP65	IP65
Refresh rate (Hz)	>1920	>1920	>1920	>1920
Weight	30kg/㎡	30kg/㎡	30kg/㎡	30kg/㎡
working temperature	-10~40℃	-10~40℃	-10~40℃	-10~40℃
Gray grade	16bits	16bits	16bits	16bits
Contrast Ratio	3000:1	3000:1	3000:1	3000:1
